Hercules DJ Console Mk2
SB Audigy 2

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 16-bit, 44 kHz




Summary

TestHercules DJ Console Mk2SB Audigy 2
Frequency response (from 40 Hz to 15 kHz), dB: +0.11, -0.05+0.10, -0.86
Noise level, dB (A): -87.7-95.4
Dynamic range, dB (A): 88.293.7
THD, %: 0.00370.0037
IMD + Noise, %: 0.0120.0098
Stereo crosstalk, dB: -84.7-89.1

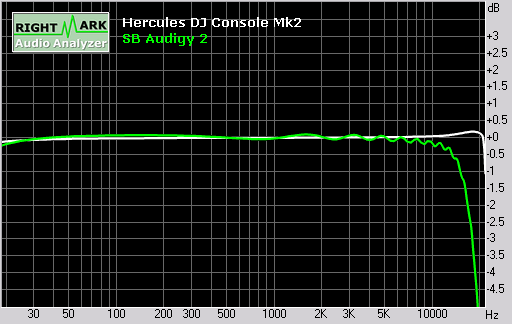

Frequency response

Spectrum graph


Noise level

Spectrum graph

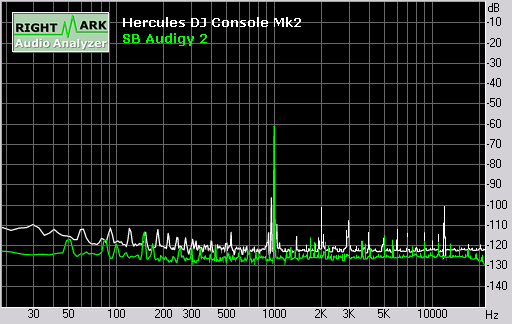

Dynamic range

Spectrum graph


THD + Noise (at -3 dB FS)

Spectrum graph

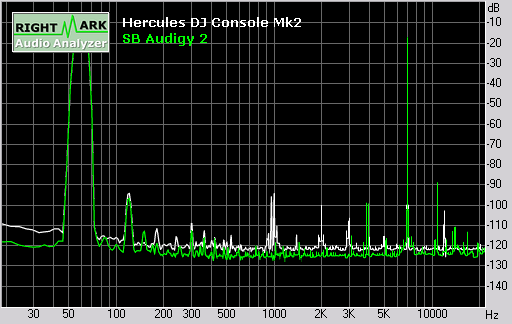

Intermodulation distortion

Spectrum graph

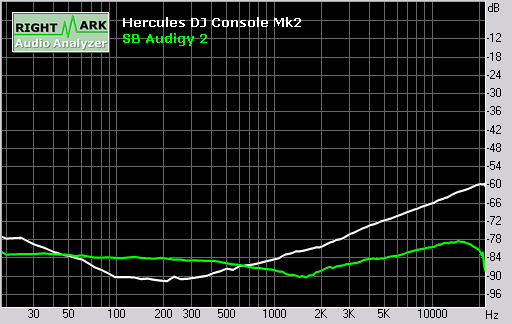

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 5.5
